SPECIFICATIONS

Brand Name: AlexXi

Certification: UL,RoHS,pse,LVD,GS,FCC,CE,CCC,CCC,ce,FCC,pse,ROHS,SAA,UL

Choice: yes

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Wifi Tuya Smart switch touch alexa voice light switch

High-concerned chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Model Number: M-US-WIFI-1234

Origin: Mainland China

Switch Type: Touch On/Off Switch

Warranty: 1

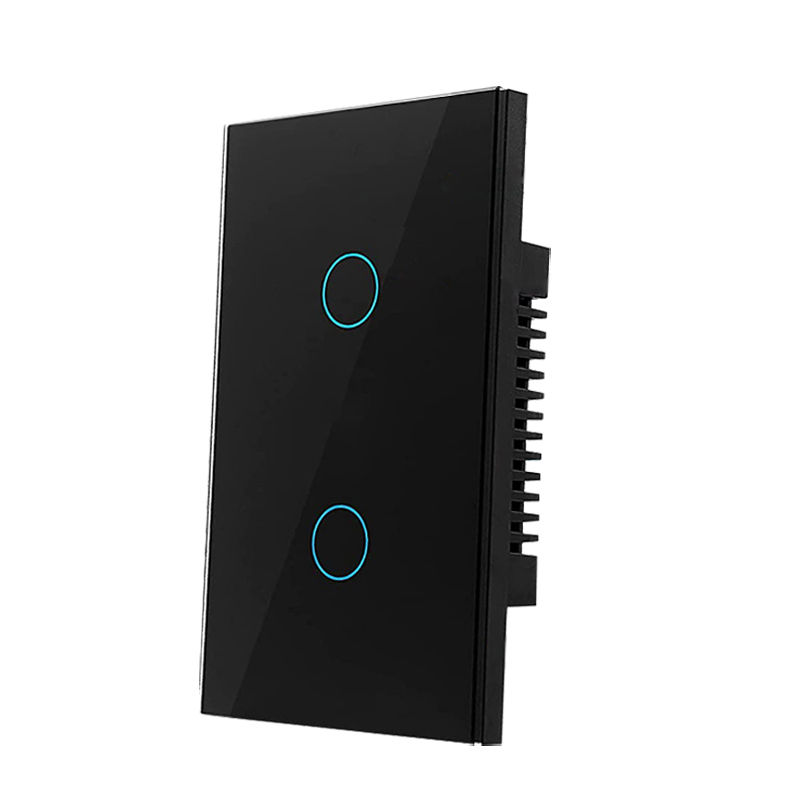

Main Features Model : WIFI-smart switch-123 Number of control paths : 1Gang2Gang3Gang Selection button: 1gang, 2gang, 3gang(1 button\2 button\3 button) Function: WIFI Network Mobile APP Smart Control APP: EWelink Wi-Fi Remote: Turn Lights On/Off Anywhere App Support: Free iOS and Android mobile apps (APP: EWelink) Compatibility: Works with Amazon Alexa Google Home Independent Control: Control each group individually Sync Status: Real-time device status provided on APP Timing: Set the appointment/countdown to turn on/off at the specified time Support: Bluetooth RF wireless remote control (remote control batteries are easily purchased at your local area) Bluetooth remote control distance: 30-50 meters Size: 120×72×32mm Power supply: AC100V-240V 50-60Hz Rated power: 2000W remind: The switch supports two installation methods at the same time: neutral wire installation and non-neutral wire installation (in the case of non-neutral wire installation, a capacitor needs to be connected and installed at both ends of the L1 bulb, and the capacitor is provided free of charge) ) feature: 1. Tempered glass panel, firm surface, no deformation and no fading, elegant and fashionable. 2. Fireproof material. 3. Wet hands can touch the switch button. 4. Sensitive touch, strong touch, capacitive touch effect. 5. LED lights on the surface, red light is on (bright), blue light is off (dark). 6.WIFI connection, remote intelligent control mobile APP (support android and ios application: EWelink) 7. APP pairing: You can quickly enter the pairing mode through wifi/mobile phone Bluetooth (the package provides instructions).

Size: 120×72×32.3mmInstallation aperture: 85mm

Installation drawing

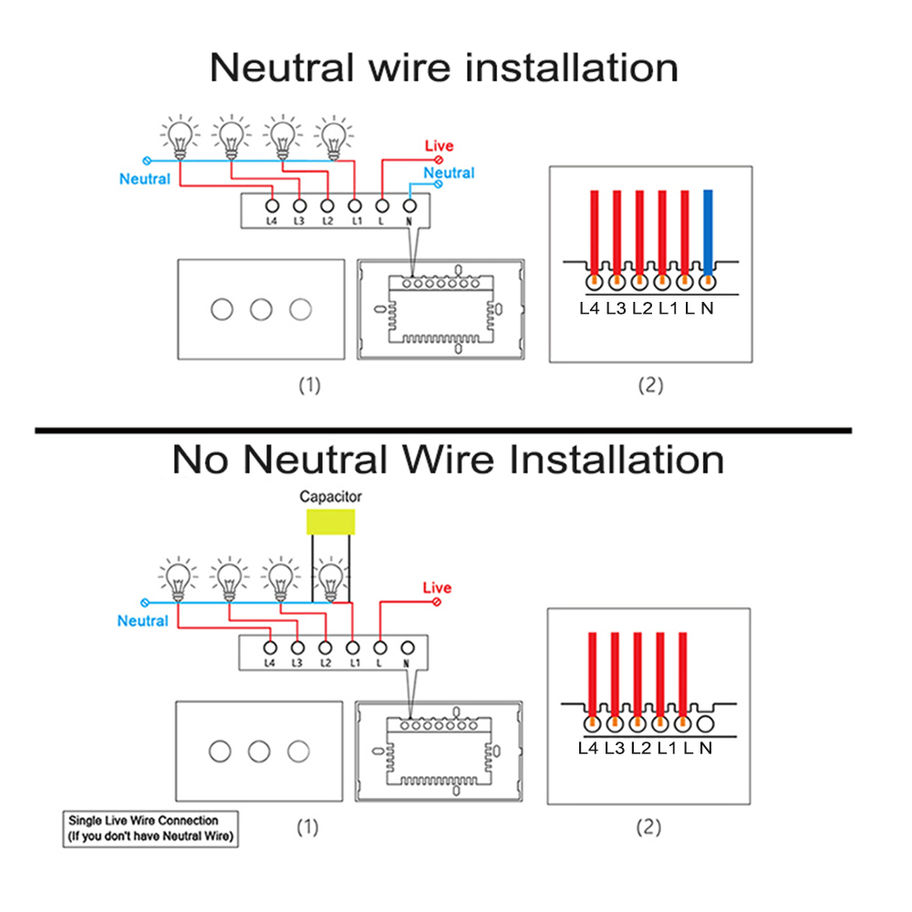

Installation and wiring method: 1. Neutral wire installation: N neutral wire, L live wire, L1L2L3L4 light wire 2. No neutral wire installation: L live wire, L1L2L3L4 light wire (L1 bulb installed yellow capacitor)

APP connection pairing method APP: EWelink Support: Free iOS and Android mobile apps Support bluetooth fast network configuration WIFI Network Mobile APP Smart Control

Bluetooth RF wireless remote control (remote control batteries are easily purchased at your local area)

App support: Free iOS and Android mobile APP (EWelink) Independent control: Control each gang separately Real-time device status provided on APP Turn your lights, ceiling fans, and other fixtures on and off from anywhere at any time
